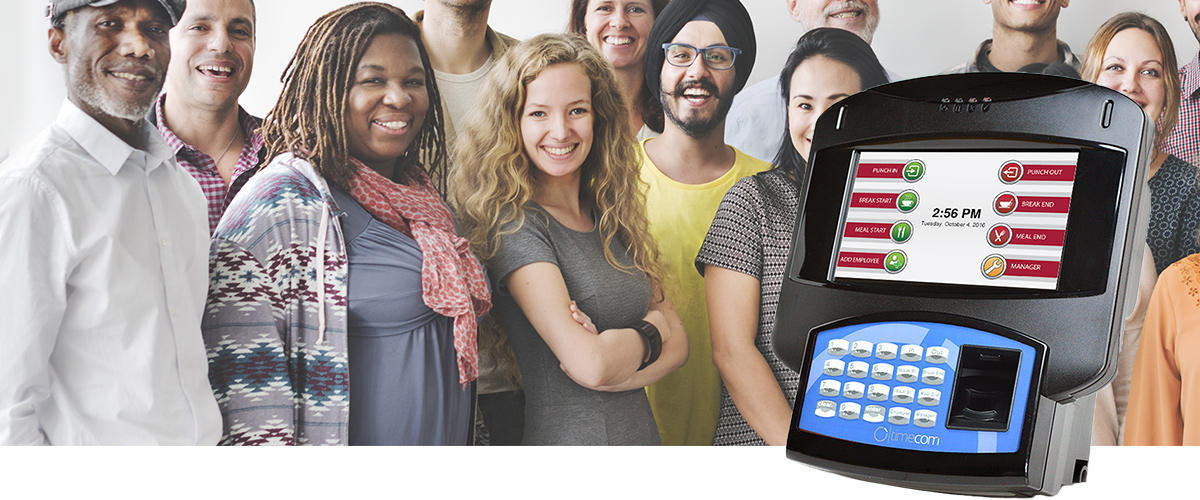

PeoplePoint Plus™

A New Level of Employee Interaction with ATS Employee Time Clocks

PeoplePoint Plus™ delivers rich graphics and video content on a 7” display. Along with our long list of standard features, the PeoplePoint allows for additional features such as: built-in high-fidelity speakers, a camera with a wide view angle, and a powerful processor that allows users to interact efficiently with the device.

  • 7” Widescreen Touch Display
  • eMMC –8GByte Storage
  • Speakers with maximum volume, up to 83db at 40” (1 meter) distance
  • Wide Angle Camera.
  • Optional Microphone
  • Optional – Biometric Suprema or Lumidigm® Reader
  • Supports Linux
  • Linux OS standard. One active, one inactive OS, providing for fault tolerant upgrade capabilities – C/C++, Java™/Python, Web services – HTML capable, Software Development Kit (SDK)
  • High Performance Processor / iMX 6 up to 1 GHz (Single Core)
>> Request a TimeCom Demo <<
>> Download Product Specs <<

PeoplePoint Plus Terminal Specifications

SPECIFICATION DESCRIPTION
DISPLAY
  • 7″ TFT Capacitive Touch, 16:6 Aspect Ratio, 800 x 480 Resolution
PROCESSOR
  • Freescale i.MX6 Single Core
MEMORY
  • 1GB DDR3 RAM / 512MB Flash
MASS STORAGE
  • Non-removable eMMC
  • 8 GB of which 2.5 MB are user available
CLOCK
  • Battery-backed real-time clock, 12- or 24-hour format (quartz precision)
KEYPAD
  • 20-key tactile, 4×5 matrix
    • Numeric keypad 0-9
    • Eight software-defined function keys
    • Clear/Enter keys
  • Customizable overlay allows for unique graphic options
PROGRAMMING
  • Linux OS standard. One active, one inactive OS, providing for fault tolerant upgrade capabilities
  • C/C++, Java™/Python
  • Web services – HTML capable
  • Software Development Kit (SDK)
APPLICATION SOFTWARE
  • ATS AccuCollect – Configurable punch workflow management including job transfers, attestations, and more.
DIAGNOSTICS
  • On-board and remote diagnostics capability
INTERFACE
  • Standard 10/100/1000 BASE-T Ethernet
  • Optional Wi-Fi with WPA support
  • Optional internal 3G cellular modem Internal USB port
ENCLOSURE
  • PC/ABS
POWER
  • 12 VDC (nominal) 1A, 12W maximum
  • Optional uninterruptible power supply
  • Optional IEEE 802.3af/at-compliant POE
ENVIRONMENT
  • Operation Temperature: 0˚ to 50˚C (32˚ to +122˚F)
  • Storage Temperature: -20˚ to 80˚C (-4˚ to +176˚F)
DIMENSIONS
  • H 26.67cm x W 22.86cm x D 10.16cm (H 10.5″ x W 9″ x D 4″)
CERTIFICATIONS
  • CE Mark, FCC Part 15 Class A
ACCESSORIES
  • Biometric readers – 1:1 and 1:
  •  Integrated visible or infrared barcode readers
  • Integrated magnetic stripe readers
  • Contactless smartcard readers (HID® Prox, Mifare™, iClass®, Marin)
  • External readers – Wiegand compatible
  • Dry contact low voltage relay modules dual Form C
  • Uninterruptible power supply
